Description
Begin by removing the old circuit board by shutting down all power and opening the top of the heater tohave access to the old board. Unplug the membrane pad from the board and remove the wire connectors connected to the old board.
Unscrew the 4 screws holding the board in will allow you to take the old board completely out.
Screw the board back in and plug the membrane pad into the connection that accepts the ribbon cable. Reconnect all of the wire connections and close out your master temp or max e therm heater.

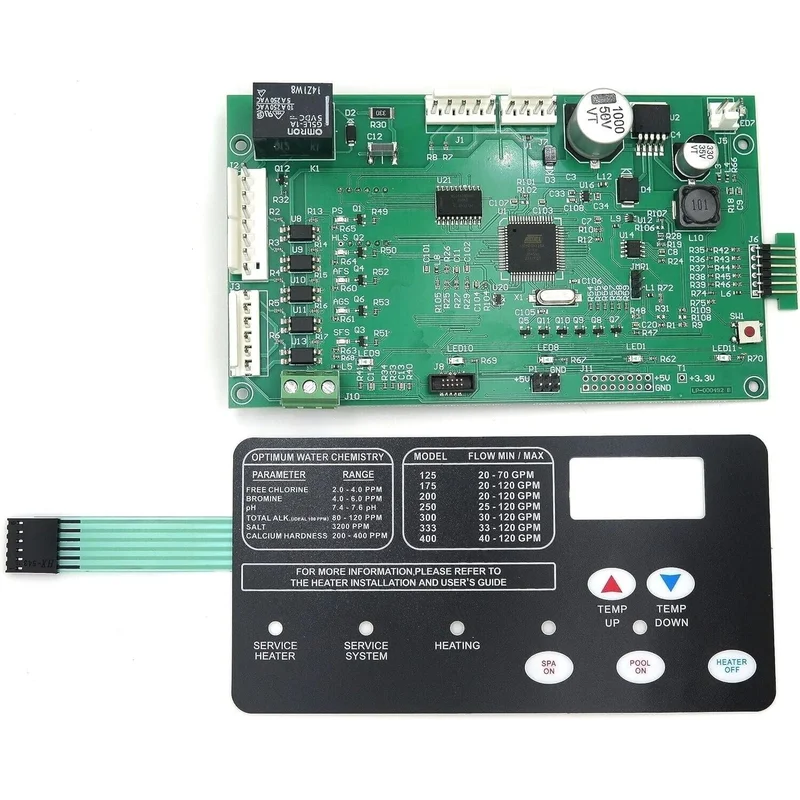

Compatible with Pentair Masternp&Max-E Therm NA and LP series pool/spa heater electrical systems OE replacement part number 42002-007S+472610Z Replace MasterTemp200 MasterTemp 250MasterTemp 300MasterTemp400SR200NASR333NASR400NASR200HDSR333HDSR400HD460805
Replace all NA and LP series pool/spa heater electrical systems 42002-007S Mastertemp&Max-E Therm Pentair swimming pool and spa heater NA and LP series swimming pool/spa heater electrical system control board kit replacement. 472610Z membrane pad replacement MasterTempswimming pool/spa heater electrical system switch membrane pad replacement.
