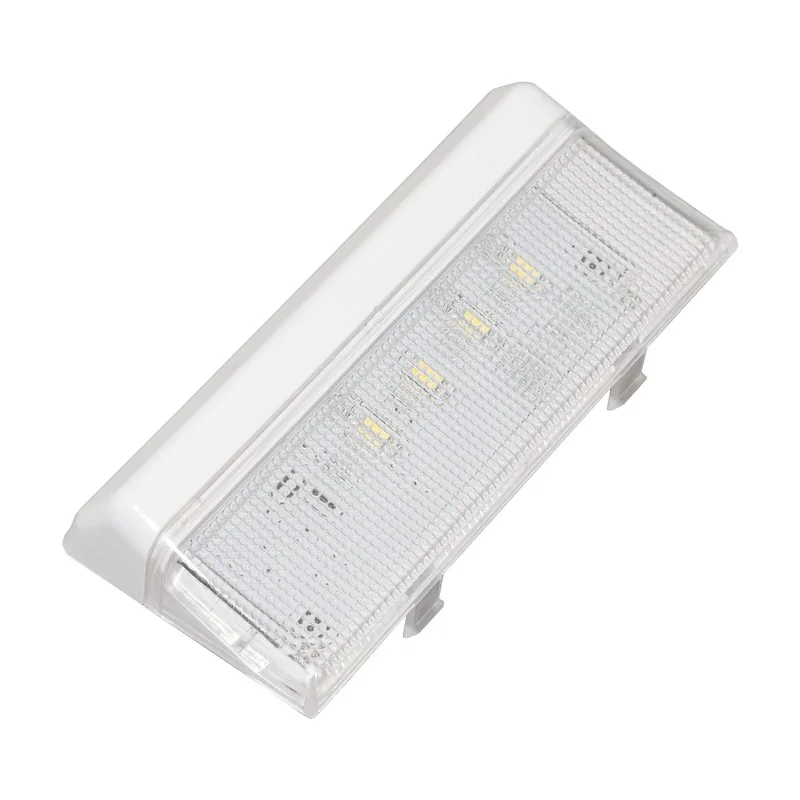

W10515057 Refrigerator Freezer Rear Panel LED Module with Tapered Lens and Bezel for Whirlpool, Kenmore, Maytag, Refrigerators 3021141 PS8768636 W10398007 WPW10515057-Fast Shipping

Description

Replacing Part Number: WPW10515057, 3021141, W10398007, W10515057, PS11755866, AP6022533.

This part compatible with Whirlpool,Kenmore,Maytag,Ikea,Kitchenaid. Replacing Part Number: WPW10515057, W10398007, W10515057, PS11755866, AP6022533. Whirlpool WRS325FDAT02, WRS325FDAM02, WRS325FDAM04 WRS325FDAM01, WRS331FDDB01, WRS331FDDW01, WRS331FDDM01, Kenmore10641122213, 10641122211 10641122212, 10641122210.

There are two of these lights used in your refrigerator. One is located in the back panel cooler side, the other one is located in the freezer side. The led light located on the ceiling is main led board W10515058, you need to make sure the main board works well before replacing any of the other two ligths, the secondary light are being fed power thru main led light. If main led does not work, the secondary led will not work.

Make sure to DISCONNECT the refrigerator before replacing the led to avoid burning the new led.

If you have any questions, please contact us and we will answer your qluestions.
