Description

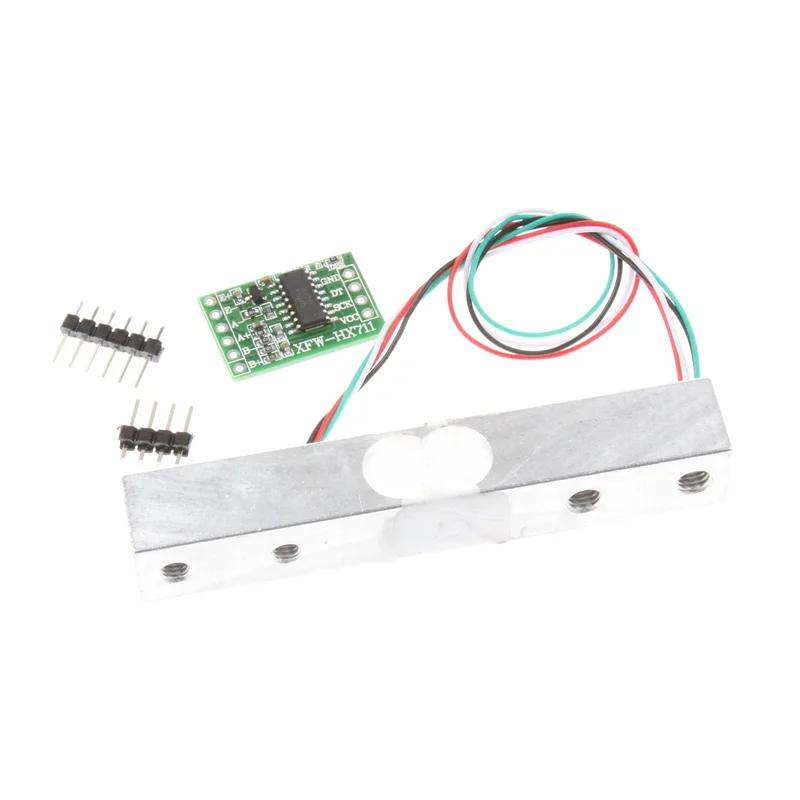

Load cellSturdy aluminum alloy construction with strain gauges pre-attached with strain relieved wires. Accurate measures forces from 0-5kg/ 5kg /10kg /20kg.
HX711 :This top of the line load cell amplifier mounted on a breakout board pairs perfectly with the load cell to provide fast, accurate force measurements. It measures small changes in the resistance of the strain gauges mounted to the load cell and passes these values directly to any micro controller (like an Arduino or Raspberry Pi).
Load cell specs: 22 cm (8.5 in) wire leads pre-attached. Dimensions 13.5mm high, 13.5 mm wide, 76 mm long (0.5 in x 0.5 in x 3.15 in). 4 mounting holes, 15 mm spacing on each side. One both holes tapped M4 thread, the other side both holes tapped M5 thread.
HX711 specs: Operation Voltage: 2.7V-5V ; Operation Current: < 1.5mA ; Selectable 10SPS or 80SPS output data rate ; Includes breakaway headers for connection, soldering required.
Please choose the correct specification before buying. (A total of four specifications).Please refer to the picture on the left of this page for the product wiring diagram.
