Geekstory 10 kg Digital Load Cell Weight Sensor HX711 AD Weighing Sensor Module High Precision for Arduino DIY Electronic Portable Kitchen Scale (2 Sets)-Fast Shipping

Description

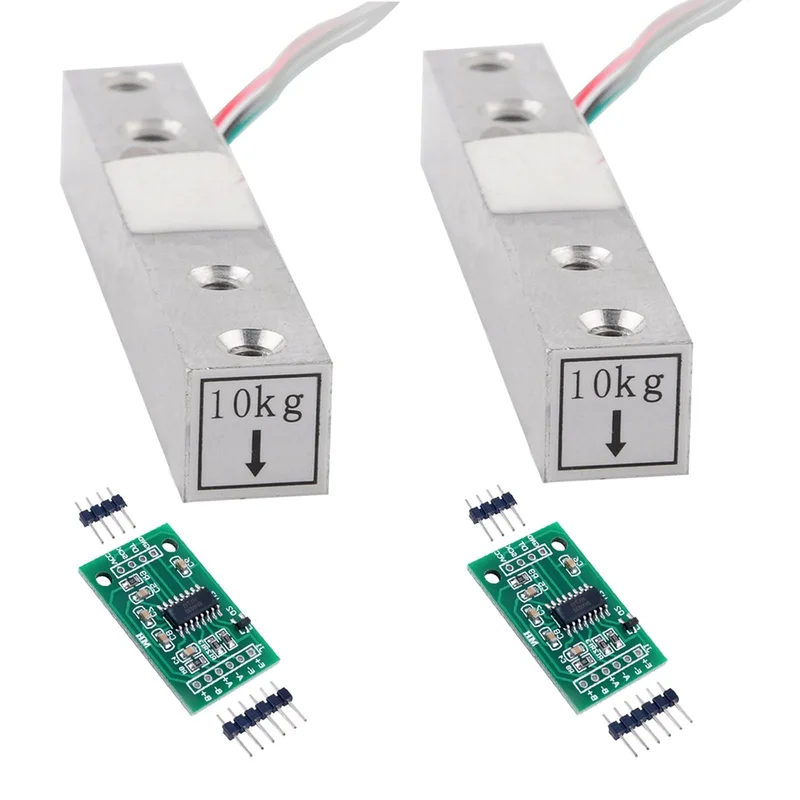

You will receive 2 x 10 kg load cells + 2 x HX711 AD module

This HX711 module uses 24 high precision A/D converter chips hx711. It is a specially designed for the high-precision electronic scale with two analogue input channels the internal integration of 128 times the programmable amplifier

You need to connect the load cell to the HX711 module as follows: Red to E+, Black to E, Green to A+, White to A-

On-chip active low-noise PGA with selectable gain of 3264 and 128

Load cell: 4 lines, easy to use, plus 5-10V drive voltage, direct output as voltage signal due to force changes. Easy Digital Control & Serial Interface – Pin controlled control, no programming required. Works for Arduino and Raspberry Pi
