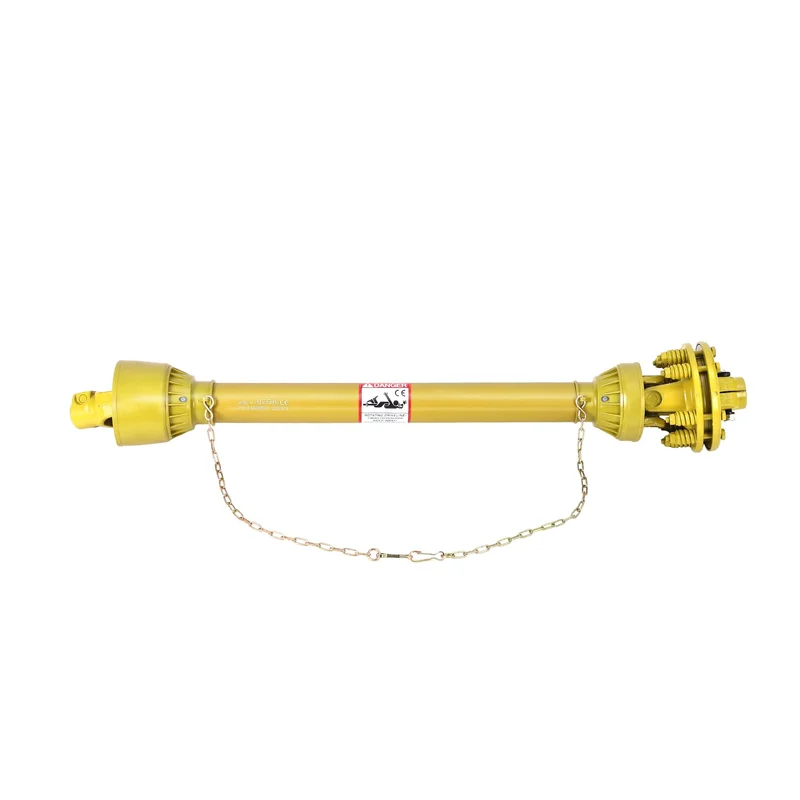

Garvee 1-3/8″ Pto Drive Shaft with Slip Clutch, 6 Both Ends Pto Shaft, Series 4 Tractor Pto Drive Line Shaft,43″-57″Brush Pto Friction Shaft, Pto Shaft for Bush/Rotary Cutter/Finish Mower-Fast Shipping

Description

CE-Certified Series 4, Slip Clutch

Reliable and Durable PTO Shaft

Our PTO shaft boasts a CE-certified Series 4 driveline equipped with a slip clutch, a solid 20CrMnTi carburized steel universal joint, and a Q345 steel tube shield. This combination ensures durability and robustness, providing dependable performance when paired with diverse agricultural machinery.

Length 31.5″ to 41″, Up to 53 Hp

Adjustable Length and Power Output

The tiller PTO shaft offers a compressed length of 31.5 inches and an extended length of 41 inches, with a 5.5-inch friction disc diameter. It provides 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, and 53 Hp, 39 Kw, and 360 Nm torque at 1000 rpm, enabling independent speed control of the PTO drive line.

Slip Clutch and Safety Features

Easy Assembly with Enhanced Safety

Designed for straightforward assembly, the integrated slip clutch and safety shield reduce risks, ensuring safe and efficient use.

1-3/8″ x 6 Ends on Both Sides

Seamless Compatibility

The 1-3/8″ x 6 ends on both tractor and implement sides provide seamless compatibility, delivering strong driving force and for transferring power to various equipment, this PTO shaft offers reliable torque conversion and operational efficiency.

Specifications
