ACS712 Hall Effect Current Sensor Module 5A 20A 30A Range Voltage Sensor Module DC0-25V Voltage Tester Terminal Sensor for Arduino-Fast Shipping

Description

Perfect CombinationUsing this product can measure both voltage and current, very suitable for DIY electronic design projects.

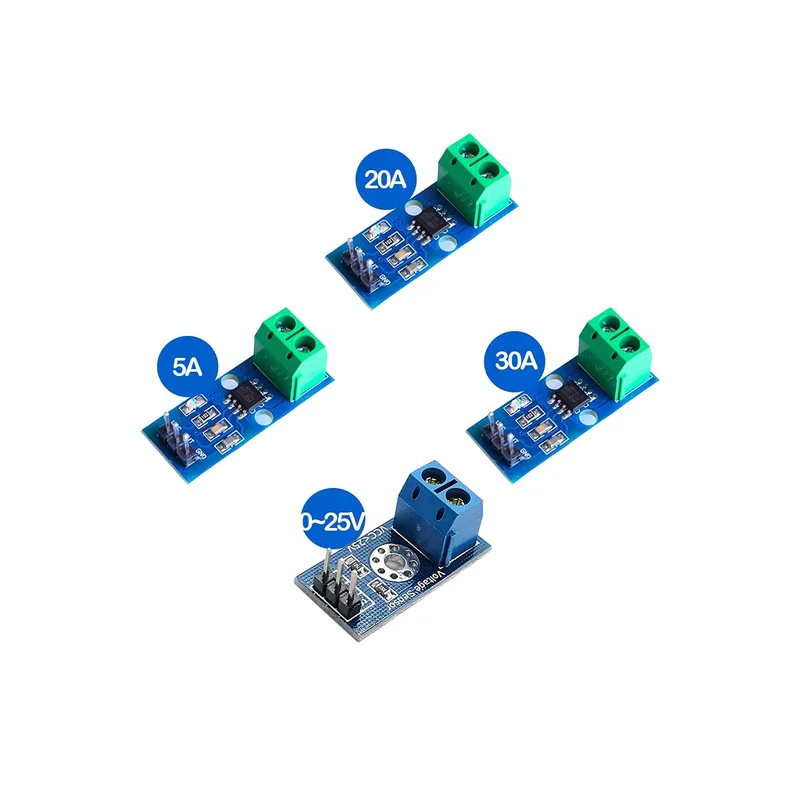

Package Included1pcs x 30A,1pcs x 20A, 1pcs x 5A ACS712 Current Sensor Module, and 1pcs x Voltage Sensor Module DC0-25V Voltage Tester Terminal Sensor

Current Sensor ModuleChip: ACS712ELC-05AMeasuring range: ±5 amps, corresponding Analog output:185mV/A.— ACS712ELC-20AMeasuring range: ±20 amps, corresponding Analog output:100mV/A.— ACS712ELC-30AMeasuring range: ±30 amps, corresponding Analog output:66mV/A.

Voltage Sensor ModuleVoltage input range: DC0-25V; Voltage detection range: DC0.02445V-25V; Voltage Analog Resolution: 0.00489V; DC input connector: Terminal cathode connected to VCC, GND negative pole; Output interface: “+” then 5/3.3V, “-” then GND, “s” then the for Arduino AD pins.

Pls Note: ACS712 is based on the principle of Hall detection, please avoid the influence of magnetic field when using it!
